DARE TO PLAY

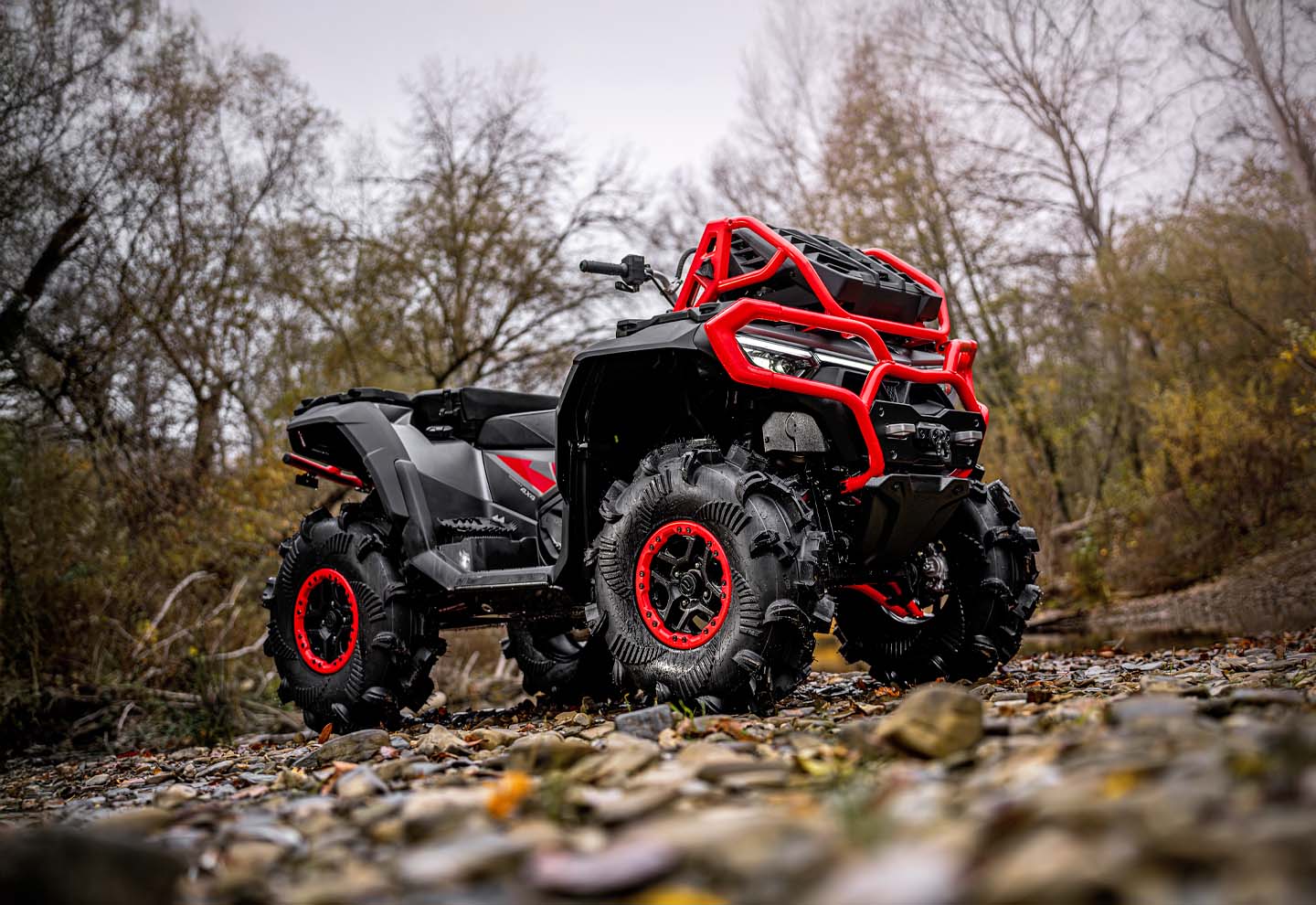

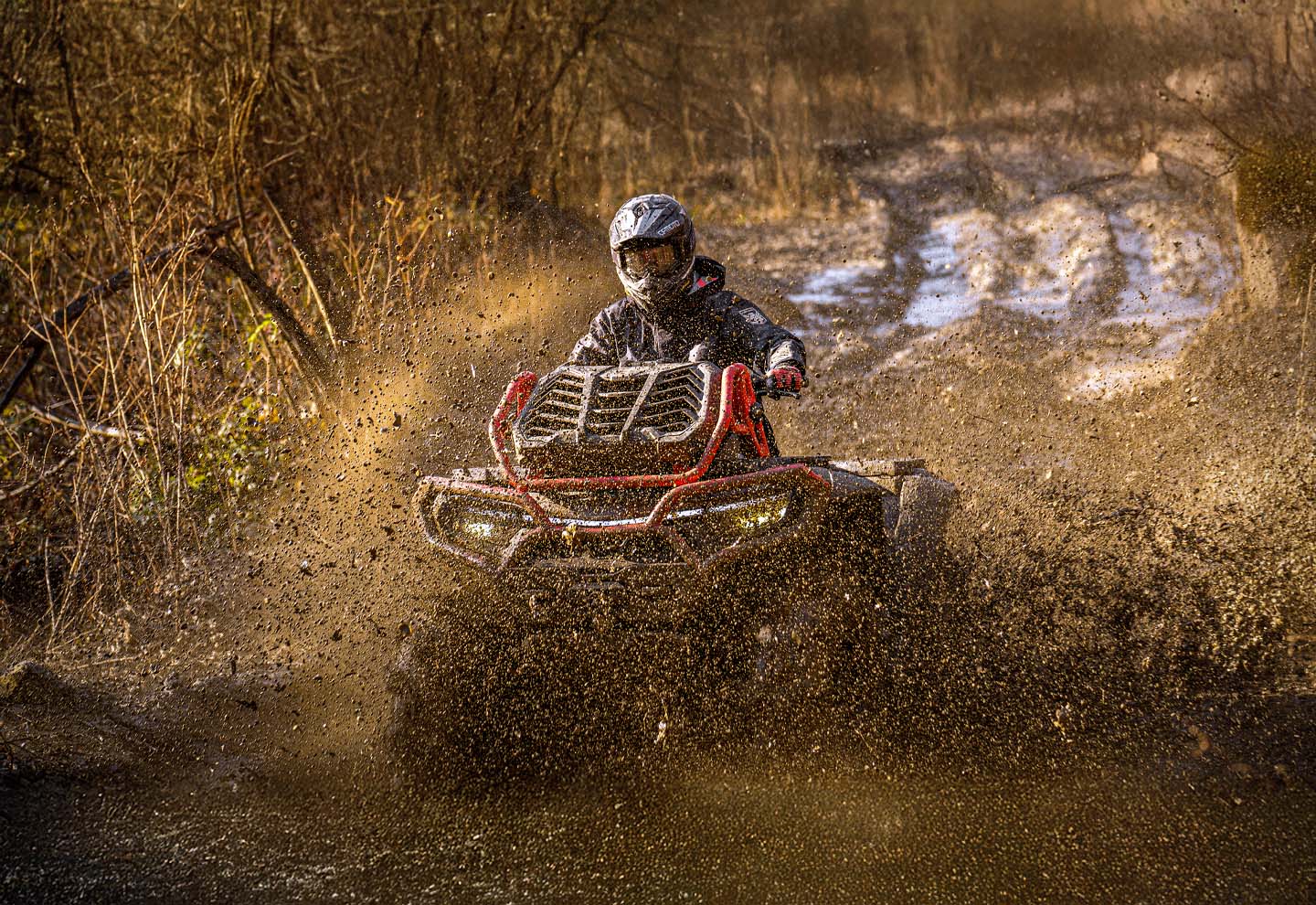

Designed for fun-seekers, the CFORCE 1000 MV is the ultimate CFMOTO companion for off road adventures. Based on the latest CFORCE 1000 TOURING platform, the CFORCE 1000 MV primary focus is its multi-terrain capability, with a raised radiator, raised engine / CVT intakes, raised ground clearance and loaded with factory fitted extras to ensure nothing holds you back when attacking mud, waterlogged trails or challenging terrain.

Unleash your wild side with the CFORCE 1000 MV

UNMATCHED PERFORMANCE

The CFORCE 1000 MV boasts class-leading power output producing an impressive 90hp with 85Nm of grunt. Enhanced V-twin power is achieved through meticulous engineering, including a reinforced cylinder head, enlarged intake and exhaust valves, and optimised camshafts.

- Three power modes, SPORT, NORMAL or WORK. - An electronic throttle with burst sensor for greater throttle response.

CFMOTO CVT

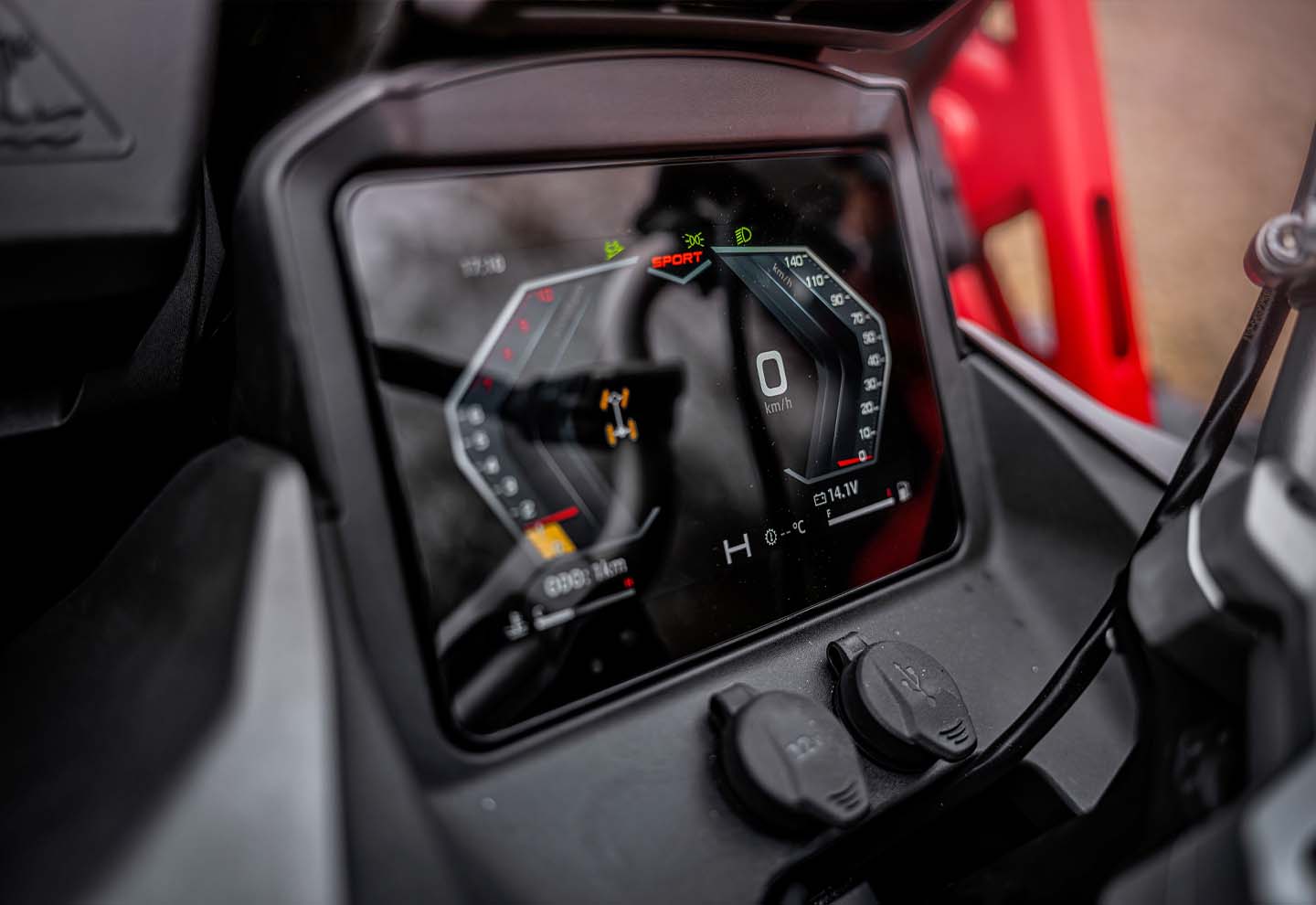

Harder working, smoother riding. The CFORCE 1000 MV is fitted with CFMOTO’s new CVT system. The CVT temperature is now shown on the vehicles dash displayed to minimise chances of overheating and maximise operating performance.

The MV also features an increased H-gear ratio by 22% (over CFORCE 1000 TOURING) and a heavier primary pulley. These changes maximise engine responsiveness while providing a smoother and more controlled driving experience.

KEEP IT COOL

ADVANCE COOLING

The CFORCE 1000 MV features a larger radiator located in an elevated position on top of the front storage rack. This allows for superior cooling (10% greater cooling when in the fully down position then the CFORCE 1000 TOURING). The radiator can also be tilted depending on the riding conditions:

- Mud, full-down position to maximise cooling and prevent clogging.
- Normal operation, semi-up position for optimum airflow.
- Servicing, full-up position for ease of access.

CLEAN AIR

Elevated Snorkels, both CVT and engine air intakes have been raised and are located behind the vehicle dash display (almost handlebar height) to access clean air. The CFORCE 1000 MV is fitted with a dual stage air filter for optimum filtration.

CAPABILITY

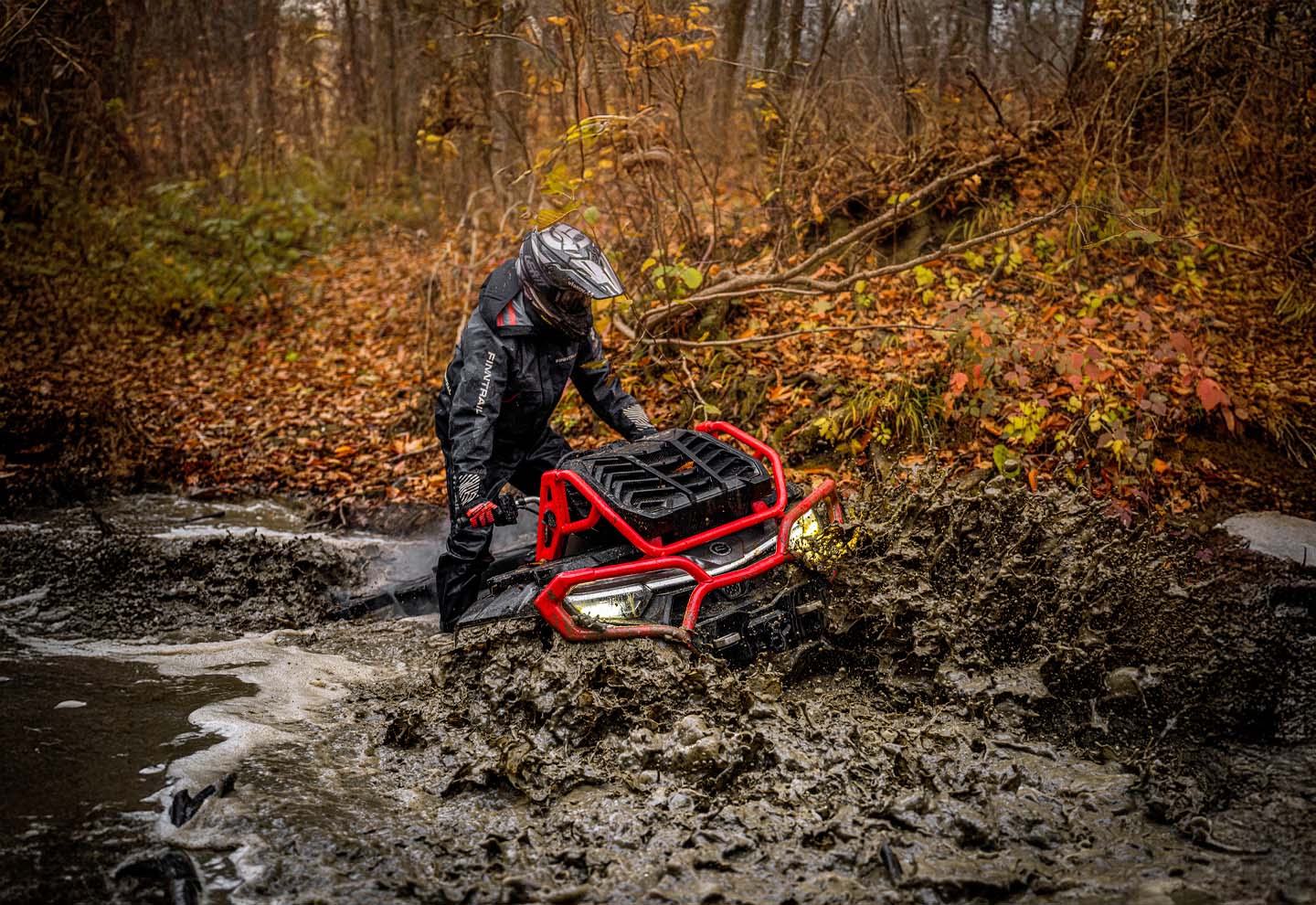

Designed for Mudding or multi-terrain capability, the CFORCE 1000 MV includes:

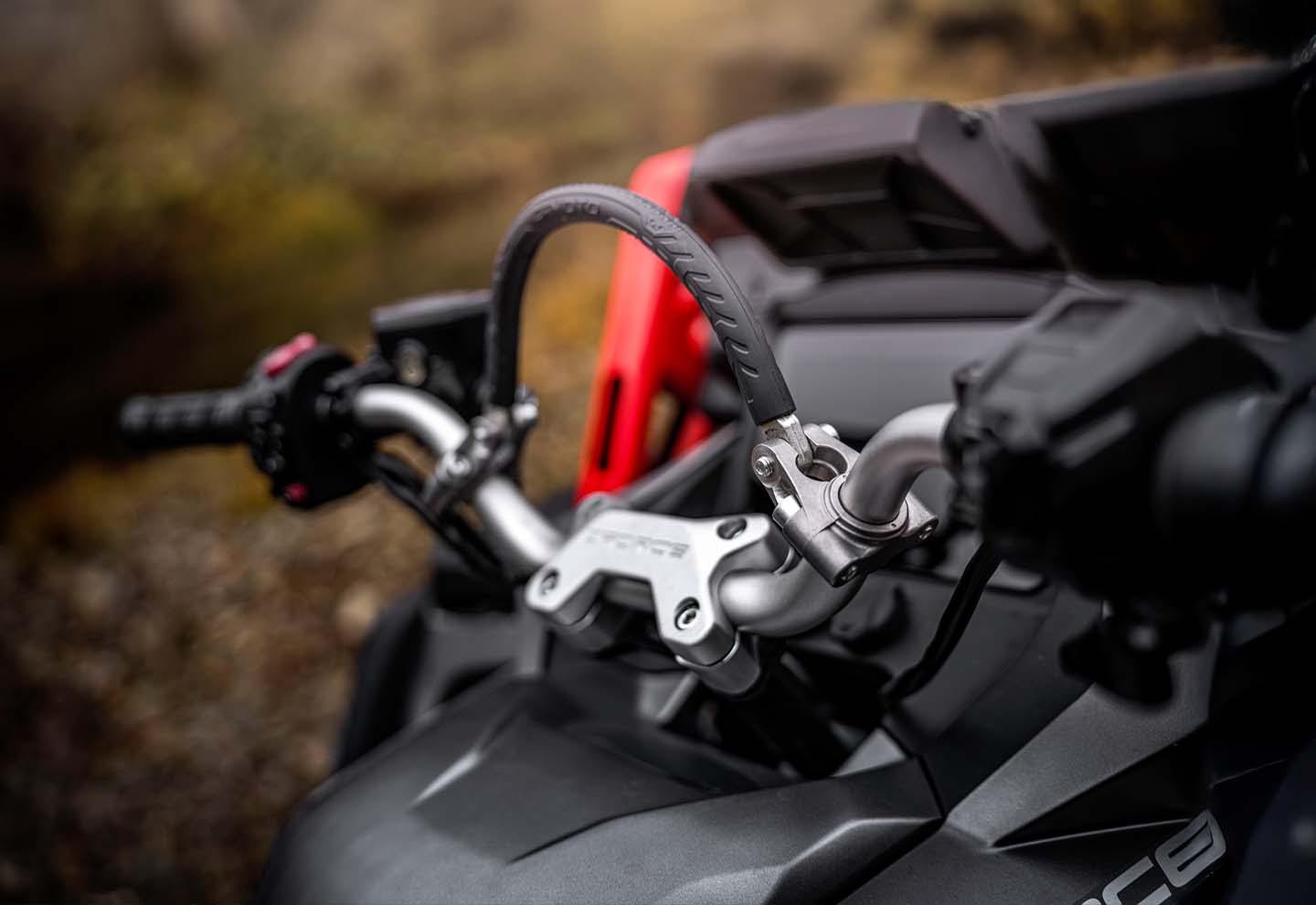

- A mud strap to help easily move the riders weight distribution.
- Diagonal rear footrests for the rider to stand up and lean forward.
- An elevated winch, raised by 200mm for easier recoveries.
- Wider front and rear flairs with greater elasticity for mud protection and flair durability.

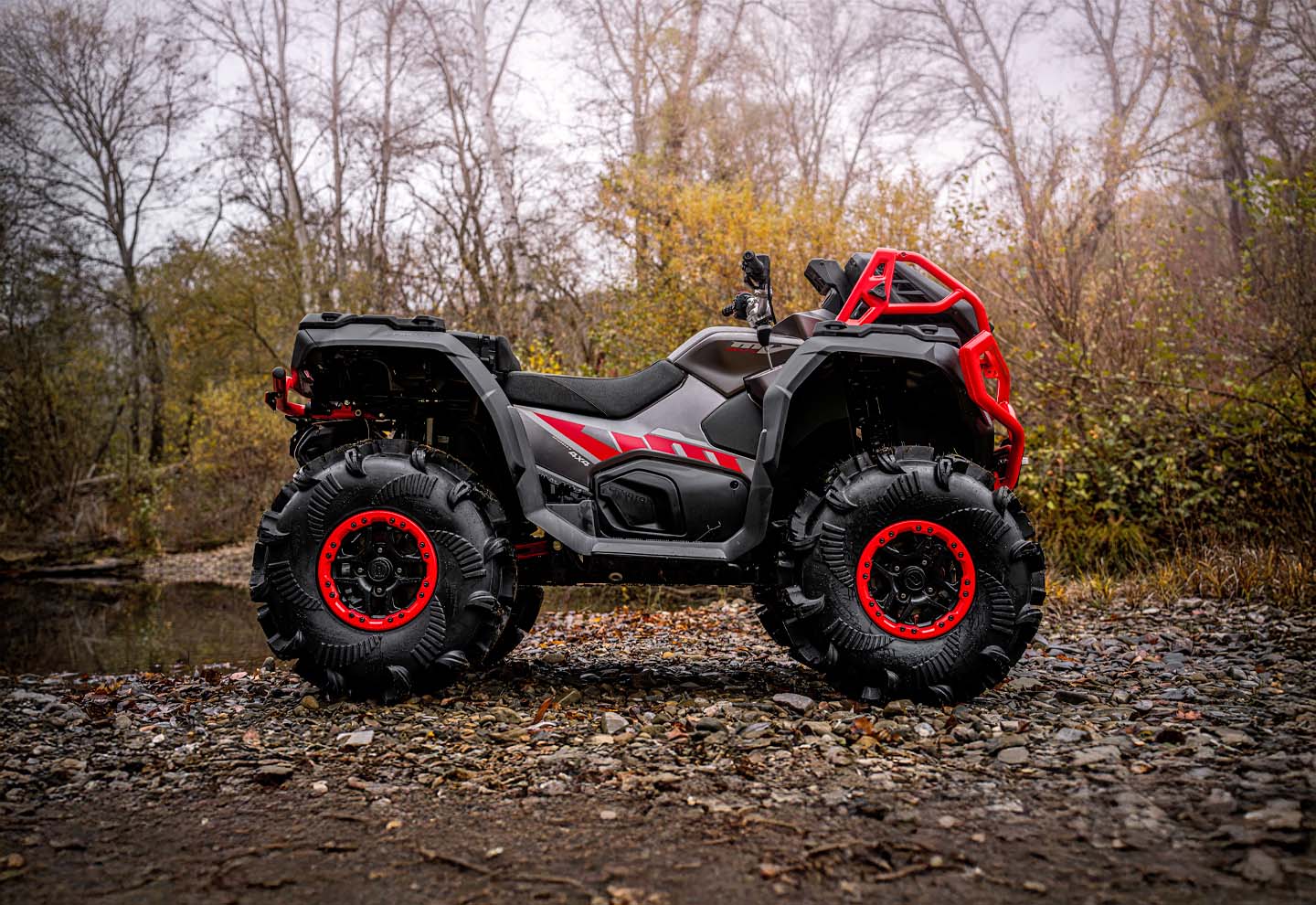

CONQUER ALL TERRAIN

- 30-inch mud tyres on 14-inch colour matched beadlock rims for some serious traction.
- A greater ground clearance from 300mm to 334mm.
- The CFORCE 1000 MV features a wider wheel track - optimised for mud conditions and to further enhance vehicle stability. The front has been widened by 25.4mm (1-inch) and the rear by 50.8mm (2-inches).

MORE GEAR

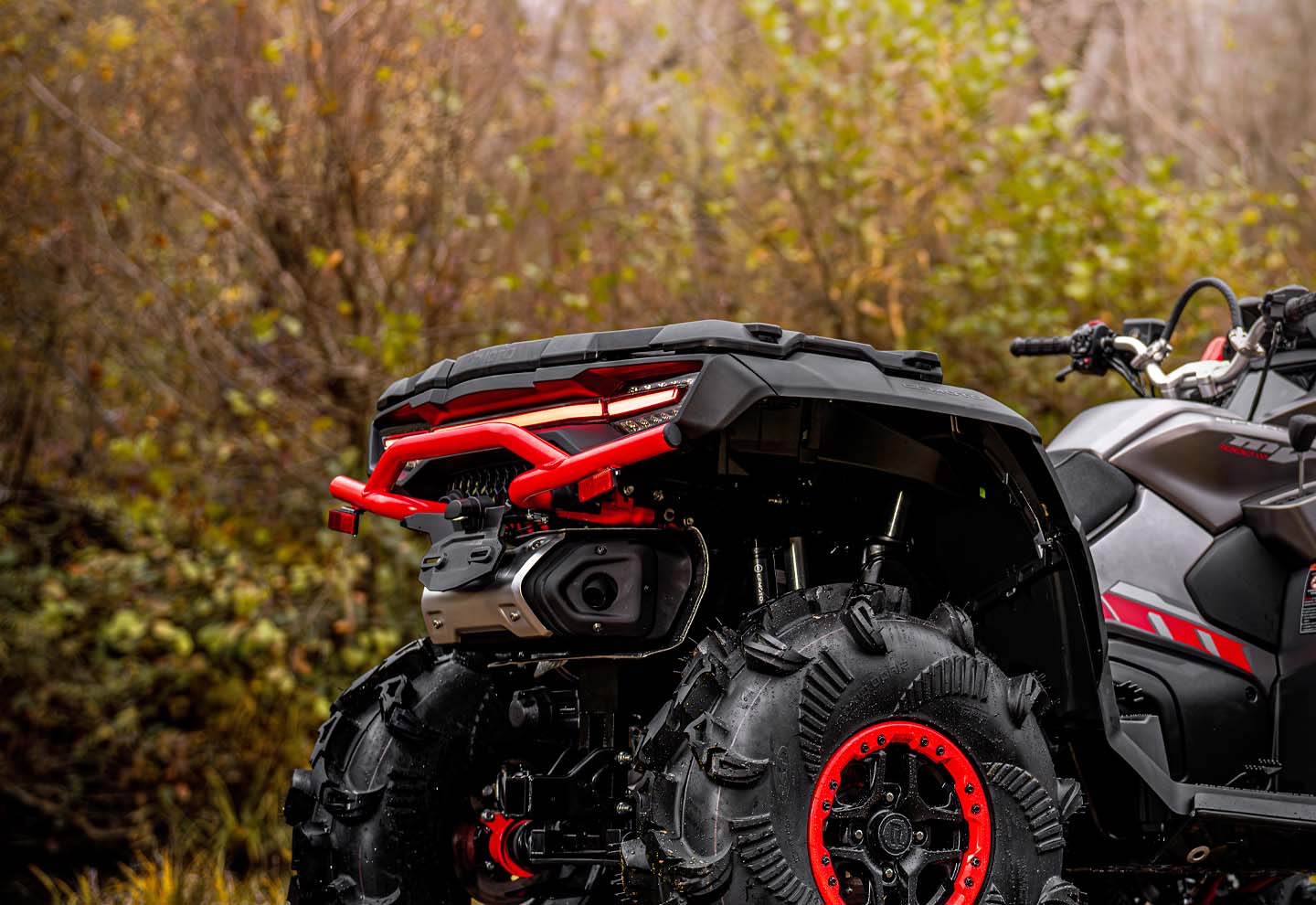

And there is more, the CFORCE 1000 MV is equipped with a 14.5 L rear storage box, replacing the rear pillion seat. The box is integrated into the ATV and offers a sealed waterproof area to safely store gear. For larger items a 90kg rear carrier rack load limit accommodates for additional of extra gear.

DUARABLE PROTECTION

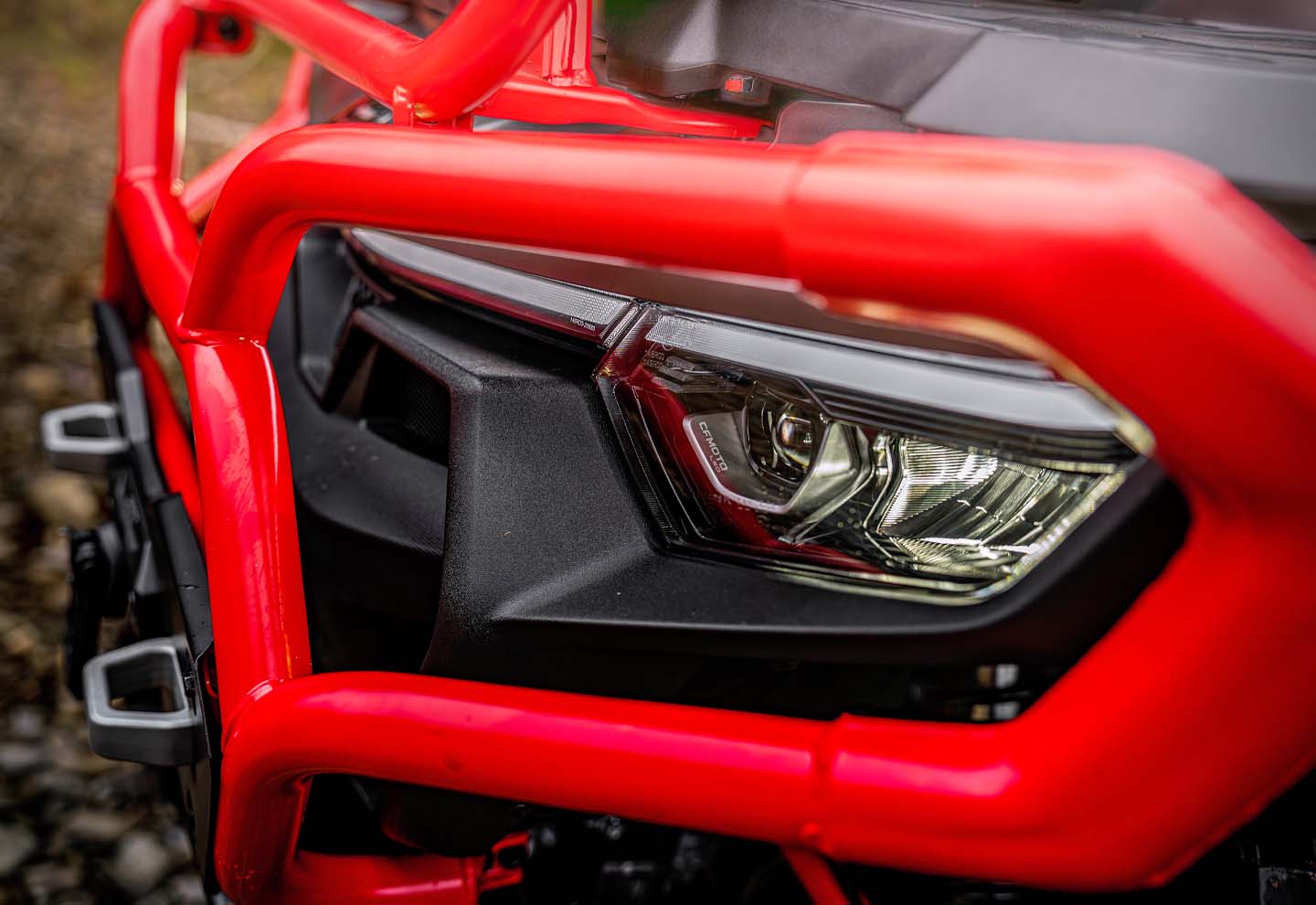

For added protection the CFORCE 1000 MV is fitted with colour matched steel front and rear protector bars. The front bar includes steel plate reinforcement and HDPE lower guard. Underneath a full HDPE Skid plate is fitted with added footwell protection.

NEW ATV LEGISLATION

Mojo Motorcycles, the Australian importer of CFMOTO, has introduced an updated range of quad bikes to meet stage two requirements of the Consumer Goods (Quad Bike) Safety Standard. If the model is advertised with the ‘Quad Bike Safety Standard Compliant’ logo, it is compliant with the requirements of stage two and will be supplied with a Quadbar OPD. The price shown on this model page is the ride away price for this quad bike fitted with a Quadbar OPD. The Quadbar OPD is installed by your CFMOTO dealer during pre-delivery.

For more information on Quadbar OPDs, visit www.quadbar.com

Overseas model shown without Quadbar OPD installed. For more information on the new ATV legislation, visit our ATV legislation page in the menu or speak to your local dealer.

TILT ANGLE

To comply with stage two requirements of the Consumer Goods Quad Bike Safety Standard all CFMOTO quad bikes have been tilt angle tested. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The CFORCE 1000 MV exceeds the minimum lateral stability tilt angle test with a result of 32.4 degrees.

SUPPORT
YOU CAN TRUST

Trusted by more than 50,000 Aussie farmers, CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV and UTV models
